Einhell | Electric Hoist TC-EH 250 4m Lift Height 250kg (Online Only) - BPM Toolcraft

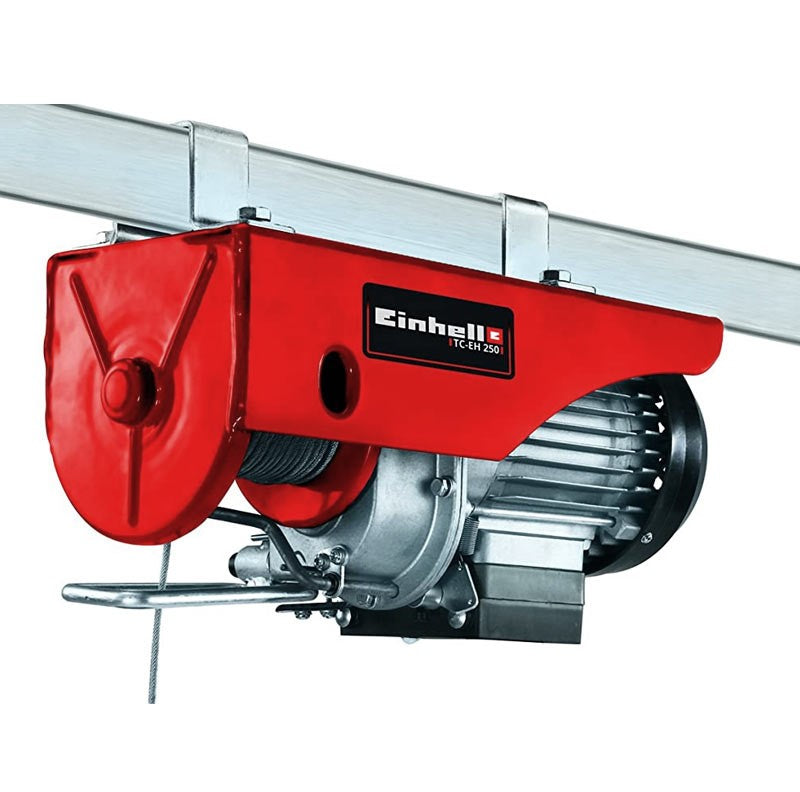

Einhell | Electric Hoist TC-EH 250 4m Lift Height 250kg

by Einhell
SKU 2255130
R 2,368.00 - R 2,368.00
R 2,368.00
R 2,368.00
R 2,368.00 - R 2,368.00
R 2,368.00

Product Description

Einhell Germany AG
A centre for ideas, quality and innovation

The TC-EH 250 electric hoist enables the safe lifting of loads everywhere in the home, garden and workshop, simply by pressing a switch. With its numerous features this cable winch reflects the state of the art. The 12 meter wire cable with a cross-section of 3mm can be used with a guide roller and load hook to lift a maximum load of 250kg to a height of 5,7m.

Without the guide roller the maximum load is halved but the lifting height is increased to 11,5m. The BT-EH 250 comes with numerous safety features. A totally insulated ON switch has an emergency OFF function which stops the winch immediately. The robust motor is protected from overheating by a thermostatic switch. The twist-free wire cable prevents the load from twisting while it is being lifted.

A safety catch on the load hook prevents the load from dropping unintentionally, while an automatic brake is ready to secure the load in any position. For reliable switching off in the end position there is a positively actuated, automatic limit cut-out. Two double clamps are provided for securing the cable winch. Separately available for the TC-EH 250 is a matching swing arm for lifting loads to higher levels and floors in multi-story buildings.
  • 12m wire cable (twist-free, Ø 3,0mm)

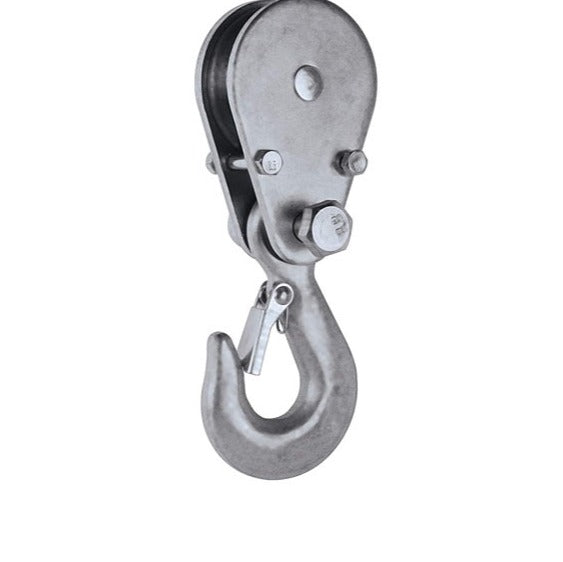

  • Guide roller with load hook
  • Operator switch with emergency stop function
  • Motor with thermal switch
  • Load hook with safety catch
  • Automatic brake secures the load in every position

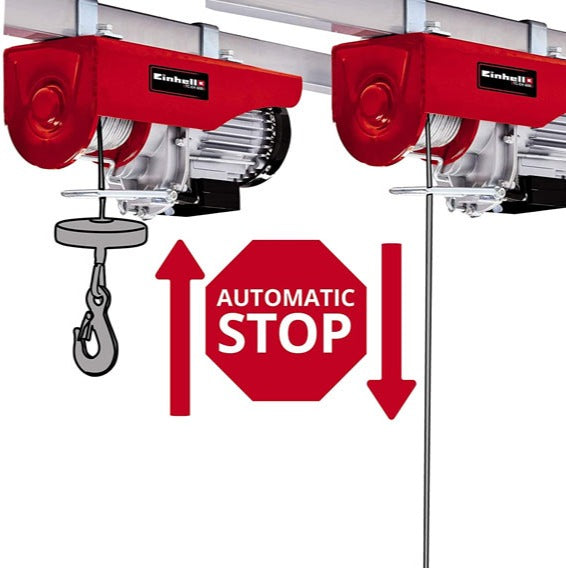

  • Automatic limit cut-out
  • Fastening with two double clamps

Specifications

Mains supply 230V | 50Hz
Max. power (S3 | S3%) 500W | 20%
Payload without return pulley 125kg
Payload with return pulley 250kg
Lifting height without return pulley 11,5m
Lifting height with return pulley 5,7m
Hoisting speed without return pulley 8m/min
Hoisting speed with return pulley 4m/min


.

×
