Euroboor | Magnetic Base Drill 50mm

Euroboor | Magnetic Base Drill 50mm

by Euroboor
SKU HTC-ECO50-3
Save 5% Save 5%
R 26,259.00
R 26,259.00 - R 26,259.00
R 26,259.00
R 25,065.00
R 25,065.00 - R 25,065.00
R 25,065.00

Product Description

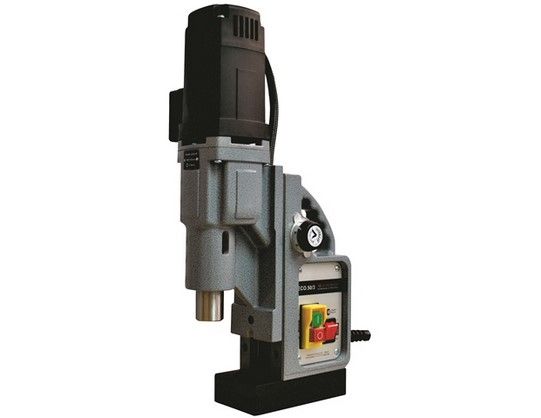

ECO.50-3 50mm Magnetic Base Drill

The Euroboor ECO.50/3 magnetic core drilling machine converts maximum power through its two speed oil lubricated gearbox. This improves motor efficiency and lifetime of key components. This portable industrial magnetic core drilling machine has an integrated slide which ensures stable support, faster drilling times and more accurate hole sizing.

This machine features

  • High accuracy capstan hub
  • MT3 spindle with integrated tool cooling and lubrication
  • Magnet LED Indicator
  • Strong dual coil CNC machined magnet

Additional features

  • Integrated slide and one-speed gearbox for High accuracy, Enlarged lifecycle & Minimal vibration.
  • High precision height adjustment for Low maintenance & Minimal wear correction.

Specifications

Brand Hitachi
Annular Cutter Size 12 to 50mm
Frequency Rating 50/60Hz
Length 320mm
Load Speed 235;425rpm
Magnet Dimension 160 x 80 x 36mm
Magnetic Force 1500kg
Motor Power Rating 1250W
No Load Speed 315;690rpm
Spindle Size 1905 (Weldon) mm
Stroke Length 170mm
Twist Drill Diameter 1 to 16mm
Voltage Rating 220 to 240V AC
Weight 11.2kg
