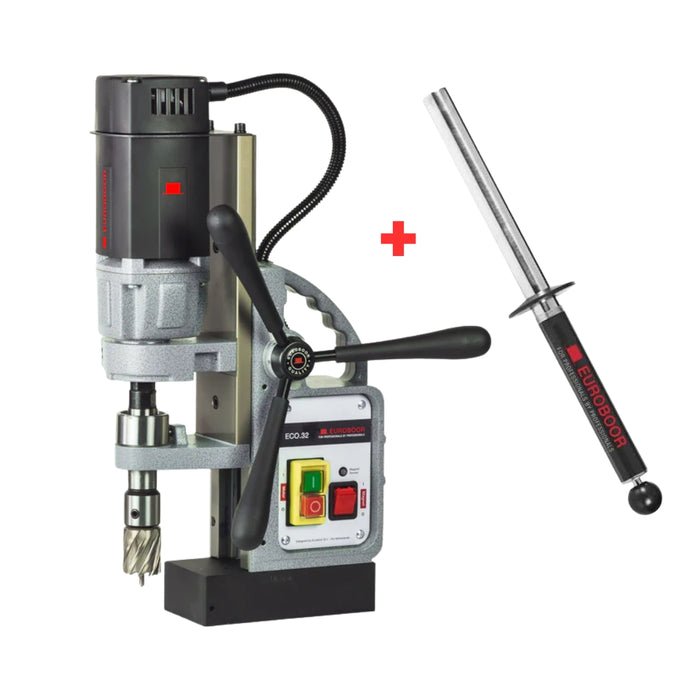

Euroboor | Magnetic Base Drill 32mm 1000W + FREE Magnetic Baton

Euroboor | Magnetic Base Drill 32mm 1000W + FREE Magnetic Baton

by Euroboor
SKU HTC-ECO32
shop
Available in-store
This item is also available at our store in 95 Victoria Road, Plumstead
weight
Heavy Item
Due to the size of this item there is a shipping surcharge*
Save 18% Save 18%
R 17,859.00
R 17,859.00 - R 17,859.00
R 17,859.00
R 14,599.00
R 14,599.00 - R 14,599.00
R 14,599.00

Product Description

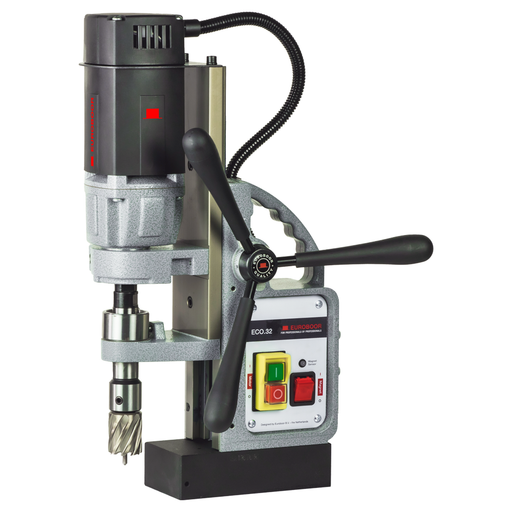

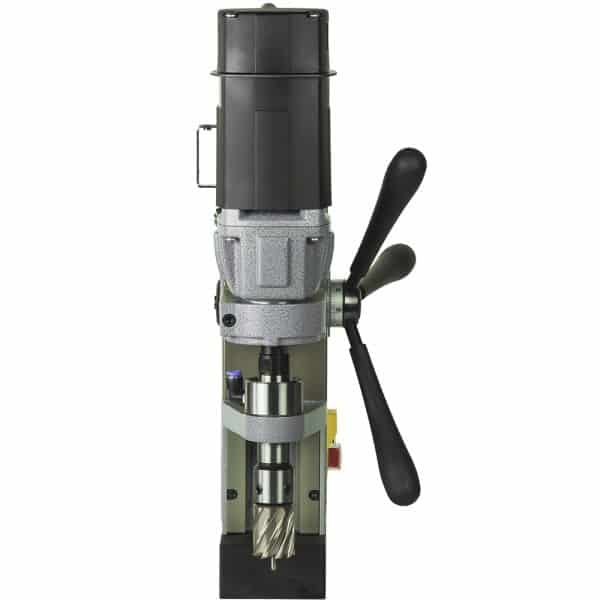

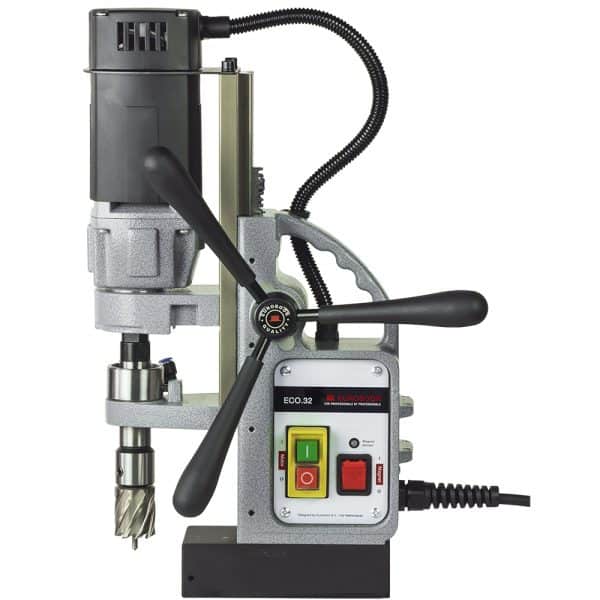

ECO.32 1000W 32mm Magnetic Base Drill

The compact Euroboor ECO.32 magnetic core drilling machine has a powerful single speed 1,000W motor. This portable magnetic core drilling machine is suitable for the use with Weldon twist drills up to ø 13mm and countersinks up to 40mm. This light and reliable machine is a true addition for every workplace.
  • One-speed gearbox
  • Detachable spindle drive
  • Integrated tool cooling and lubrication
  • High-precision height adjustment for:
    • Low maintenance
    • Minimal wear correction
  • Integrated slide for:
    • High accuracy
    • Enlarged lifecycle
    • Minimal vibration
  • Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer

Specifications

Connection
minimum diameter annular cutters (millimeter) 12
maximum diameter annular cutters (millimeter) 32
minimum diameter countersinking (millimeter) 10
maximum diameter countersinking (millimeter) 40
minimum diameter twist drills (millimeter) 1
maximum diameter twist drills (millimeter) 13
connection 1 model inside
connection 1 size (millimeter) 19.05
connection 1 type Weldon
Dimensions
stroke (millimeter) 150
magnet length (millimeter) 160
magnet width (millimeter) 80
magnet height (millimeter) 42
minimum height (millimeter) 370
maximum height (millimeter) 512
length (millimeter) 320
width (millimeter) 210
height (millimeter) 512
Properties
rotation direction clockwise
type of gear box lubrication grease
magnetic force (kilogram) 1500
electric rotation speed adjustment no
nett weight (kilogram) 11
system of measurement mm (metric)
application drilling, countersinking
Performance
no-load rotation speed gear 1 (rotations per minute) 775
load rotation speed gear 1 (rotations per minute) 400
Supply
motor power (Watt) 1000
total power (Watt) 1050
power supply frequency (Hertz) 50 - 60
power supply current AC
power supply connection EU plug according CEE 7/7
power supply source mains supply
power supply type electric
power supply tension (Volt) 220 - 240
