Bosch Professional | Wall Scanner D-TECT 200 C

The professional blue power tools and accessories from Bosch are developed for professionals. Bosch creates new innovations in power tools and accessories by working intensively with professionals who use power tools as part of their everyday work.

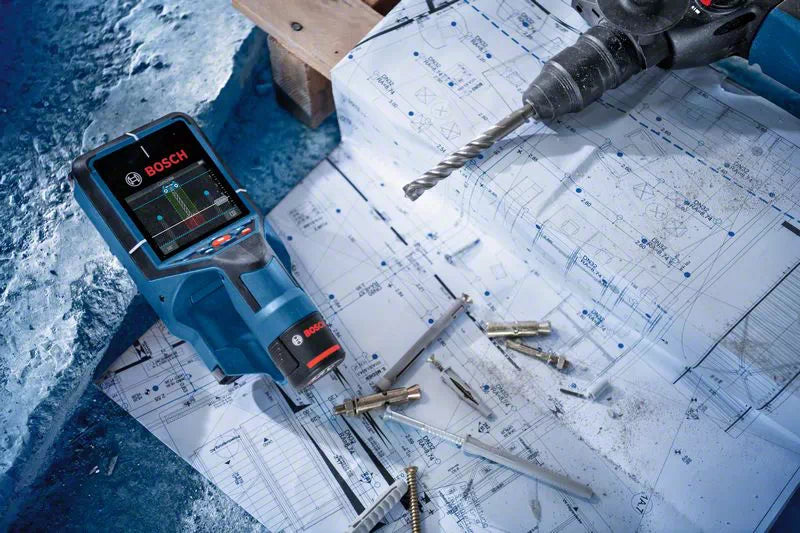

D-TECT 200 C Wallscanner - the wallscanner for exceptional results: top performance and easy documentation

The D-tect 200 C Professional detects all common objects and illustrates them clearly, while making documentation easy. Equipped with Bosch Radar Technology and an improved user interface, it stands for safer and more precise construction work. Multiple views allow for conveniently choosing the best option for different applications, such as Spot View, that makes detection in hard-to-reach locations especially easy. To provide solid evidence, the wallscanner´s innovative screenshot feature enables quick documentation.

• Bosch Radar Technology and modern user interface for precision, higher safety, and clear illustration of detected objects
• Multiple views flexibly offer best results in various situations

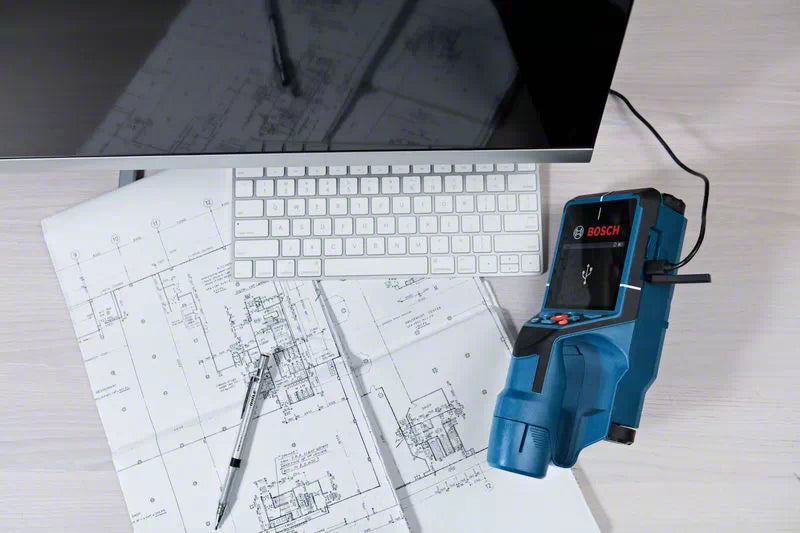

• Screenshot feature supports quick and easy documentation; screenshots are downloadable via USB-C™ and SD card slot

Equipment & Application

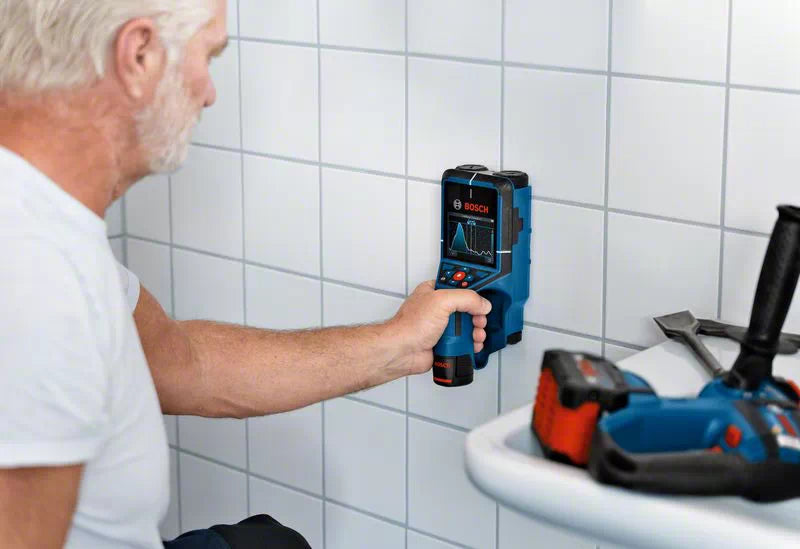

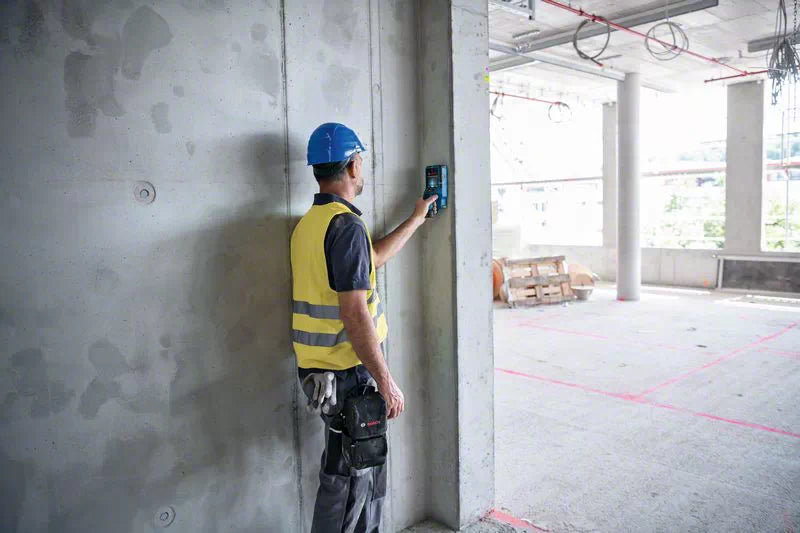

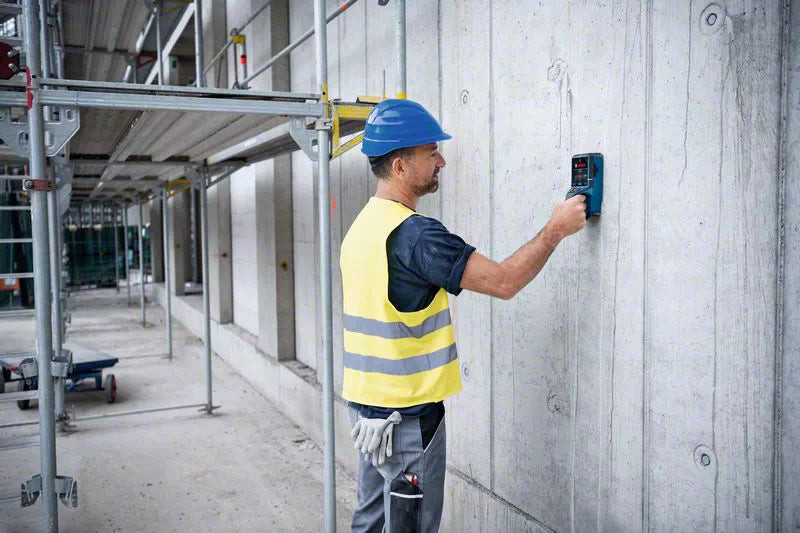

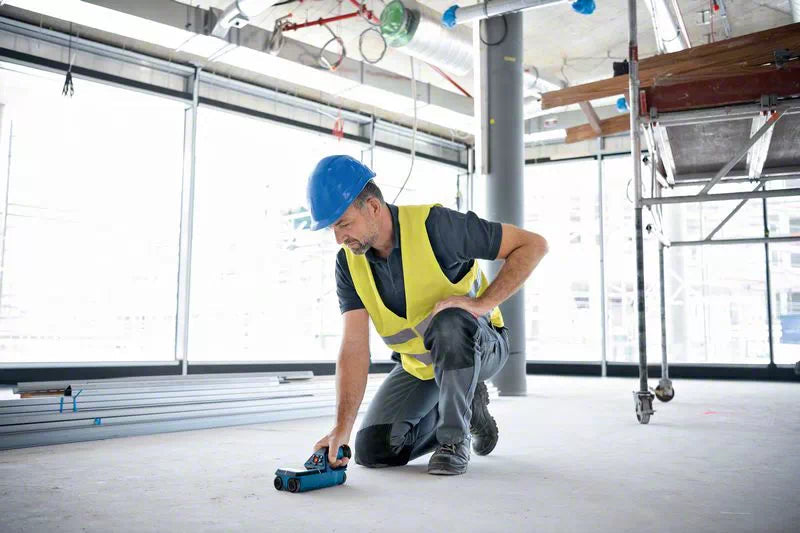

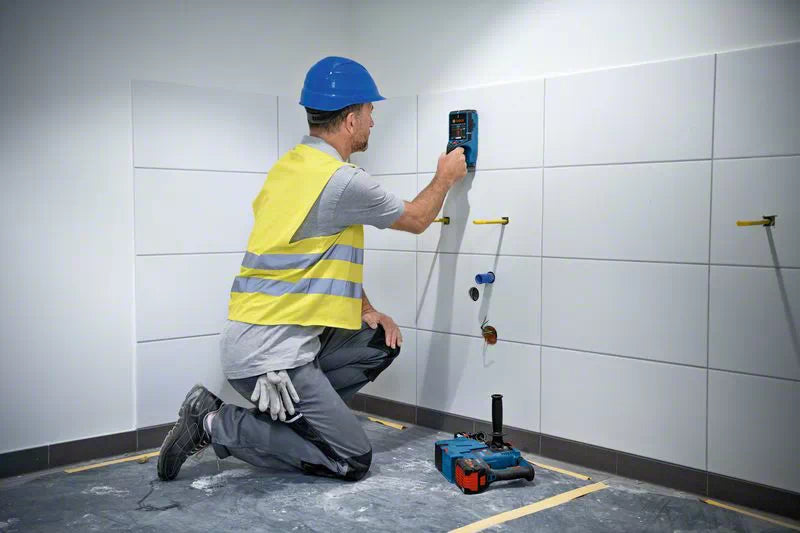

• The D-tect 200 C Professional supports both indoor and outdoor jobs, prevents damage during drilling, and measures concrete coverage

Additional Information

• The wallscanner detects objects in depths up to 20cm and indicates the object´s depth

Specifications

• Bosch Radar Technology: Yes
• Detectable Objects: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, Empty plastic pipes, water-filled plastic pipes, wooden substructures
• Max. detection depth: 200mm
• Detection depth, dry concrete, max.: 200mm
• Detection depth, early age concrete, max.: 60mm
• Detection depth, other wall types, max.: 80mm
• Detection depth, wooden substructures, max.: 38mm
• Accuracy: ± 5mm* (*plus use-dependent deviation)
• Views: Object view, Spot view, Signal View 2D, Signal View
• Wall Types: Brick/Universal, Concrete, Drywall, Panel Heating, Early age concrete, Horizontal coring brick, Vertical coring brick
• Dust and splash protection: IP 5X
• Documentation via: USB-C, SD-Card
• Updatable: Yes
• Material Identification: Live cable, Magnetic metal, Non-magnetic metal, Non-metal material
• Weight (Approx.): 0,7kg
• Additional Functions: Leakage detection, distance measurement
