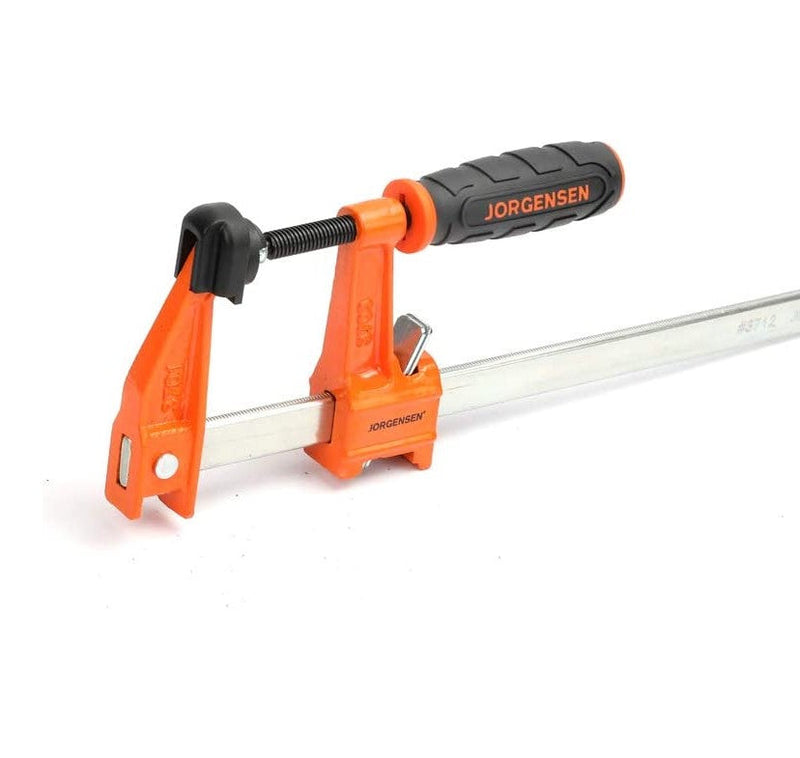

Jorgensen | Clamp Bar Medium Duty Steel 24" (610mm)

Jorgensen | Clamp Bar Medium Duty Steel 24" (610mm)

by Jorgensen
SKU AC3724
Save 13% Save 13%
R 469.00
R 469.00 - R 469.00
R 469.00
R 409.00
R 409.00 - R 409.00
R 409.00

Bar Clamp Medium Duty Steel 24"

  • Jorgensen steel bar clamps are seriously strong
  • Cast-iron stationary and sliding heads with an orange, powder coated finish are merged with a high-carbon, rust-resistant steel bar that packs a whopping 100,000 pounds per square inch of tensile strength
  • The fast-acting sliding head is acme threaded to accommodate a cold-drawn steel screw with a large easy-grip handle and swivel pad
  • Jorgensen's original multiple-disc-clutch design allows the sliding head to hold securely at any point along the bar
  • Available in a wide variety of sizes and clamping forces for light-duty, medium-duty, and heavy-duty applications

Specifications

  • Model: AC3724
  • Maximum Opening: 24" (610mm)
  • Throat Depth: 3" (76mm)
  • Clamping Force: 600lbs (272kgs)
  • Bar Type: Steel 3/4" x 1.4" (19.05 X 6.35mm)
  • Application: Medium Duty
