Dasqua | Vernier Calliper 200mm 02 Dual Stainless Steel

by Dasqua
SKU VE200DU02-DAS
Sold out
Original price R 949.00
Original price R 949.00 - Original price R 949.00
Original price R 949.00
Current price R 849.00
R 849.00 - R 849.00
Current price R 849.00

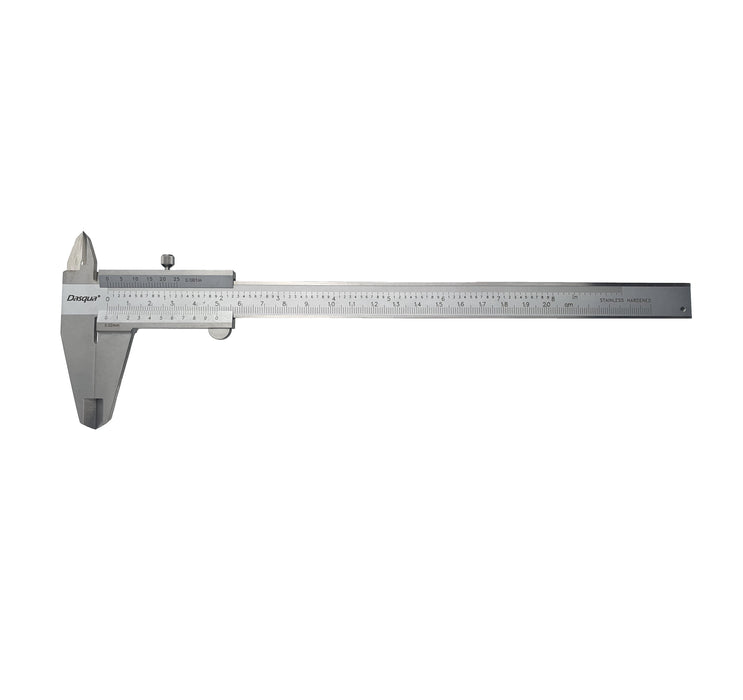

1380-3010 Mono Block Vernier Caliper 0-200mm

Dasqua 1380-3010 Mono Block Vernier Caliper 0-200 mm is a premium quality product from Dasqua. Moglix is a well-known ecommerce platform for qualitative range of Calipers. All Dasqua 1380-3010 Mono Block Vernier Caliper 0-200 mm are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field.

The materials utilized to manufacture Dasqua 1380-3010 Mono Block Vernier Caliper 0-200 mm, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Dasqua products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Dasqua Calipers .

About The Performance 1380 Series...

The 1380 Series Monoblock Engineers Vernier Caliper is a higher precision version of the 1120 Series. This is an engineers measuring tool for industrial and general use. These Calipers are strictly manufactured to DIN862 and accurate and graduated to 0.02mm or 0.001 inches.

The main calliper beam is double surface ground to a precision of less that 0.015mm which is approximately 20% better than the majority of available calliper s. This translates into an exceptionally smooth operation. Distinct and crisp laser etched markings are clearly viewable against the satin chromed beam finish.

The main calliper beam is double surface ground to a precision of less that 0.015mm which is approximately 20% better than the majority of available calliper s. This translates into an exceptionally smooth operation. Distinct and crisp laser etched markings are clearly viewable against the satin chromed beam finish.

  • Reading 0.02 mm/0.001 inch
  • Hardened ground and lapped measuring surface
  • Silky smooth movement throughout
  • Solid Stainless Steel Construction
  • 4-way jaw for outside, inside, depth, and step measurement

Operation Features

  • Metric or Imperial / mm or inch graduations
  • Position lock
  • Basic thumb wheel

Dimensions

  • Dasqua MPN 1380-3010
  • Range: 0-200mm/0-8.0"
  • E - Outer Jaw Max. Throat (mm): 50
  • B - Max. Length Inner Jaw Reach B (mm): 24
  • C - Max. Length Inner Jaw Reach C (mm): 19.5
  • D - Ruler Width (mm): 16
  • A - Overall Closed Length (mm): 298

1120A Series Monobloc Vernier Caliper Dimensional Drawing

Specifications

  • Series Name: Dasqua Monobloc 1380 Series
  • Type: Monobloc Mechanical Vernier Caliper
  • Description: Dasqua Monobloc Vernier Caliper | 0~200mm Range | 1380 Series
  • Accuracy: 0.03mm
  • Calibration Certificate Included? No
  • Resolution: 0.02mm / 0.001"
  • Measuring Face Material: Stainless Steel
  • Anvil Flatness: N/A
  • Parallelism: <0.015
  • Intended Use Standard Industrial
