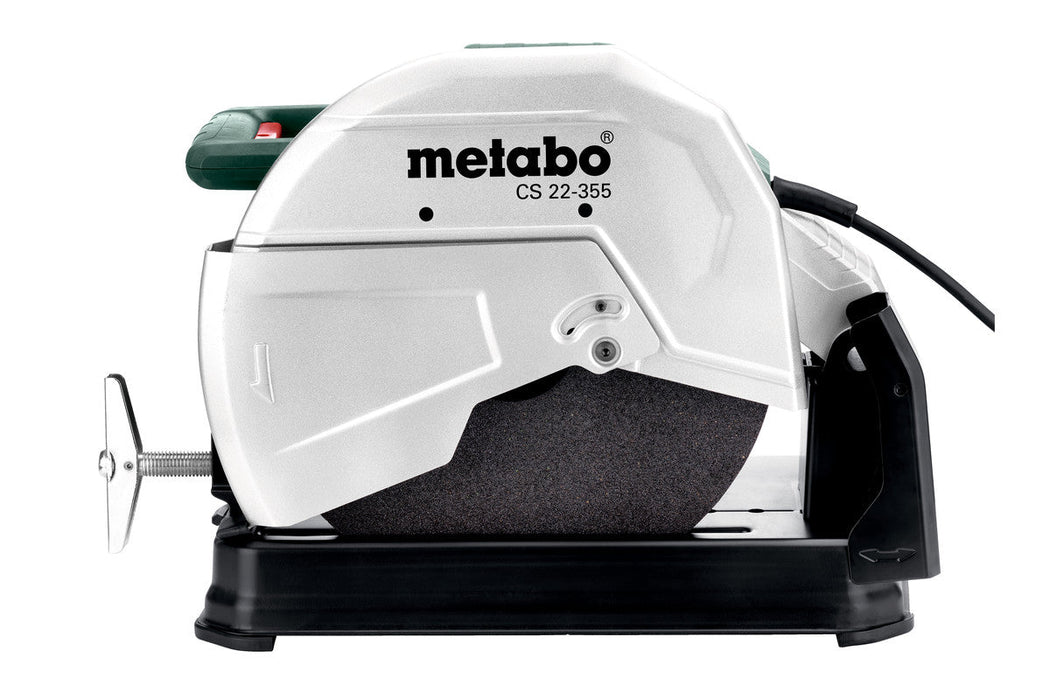

Metabo | Metal Chop Saw CS 22-355

Metabo | Metal Chop Saw CS 22-355

by Metabo
SKU 601786000
R 3,899.00 - R 3,899.00
R 3,899.00
R 3,899.00
R 3,899.00 - R 3,899.00
R 3,899.00

Product Description

  • Powerful metal chop saw for cutting of profiles, pipes and rods made of steel, NF metals, iron and cast profiles
  • Quick clamping device with variable mitre setting for angled cuts from -15° to 45°
  • Large handle transversal to the cutting axis for optimum power transmission while cutting
  • Adjustable cutting depth limiter for optimum use of the cutting disc
  • Easy, fast disc change with spindle lock
  • Maximum user safety: swivelling cutting guard, adjustable spark deflector sheet and rubberised base for safe cutting
  • Safety switch for protection against accidental start up
  • Robust, large machine table with practical storage for hexagonal wrenches
  • Easy to transport due to built-in handle and locking device

Included

  • Hexagonal wrench
  • Inner support flange
  • Flange nut
  • Cutting disc 355mm

Specifications

  • Grinding wheels (Ø x bore): 355 x 25.4mm
  • No-load speed: 3700rpm
  • Rated input power: 2300W
  • Max. cutting capacity round tube: 132mm
  • Max. cutting capacity square tube: 120 x 120mm
  • Max. cutting capacity rectangular tube: 100 x 208mm
  • Max. cutting capacity L-profile: 150 x 150mm
  • Dimensions of the base plate: 456 x 256mm
  • Transport height: 394mm
  • Weight: 16.8kg
  • Cable length: 4m

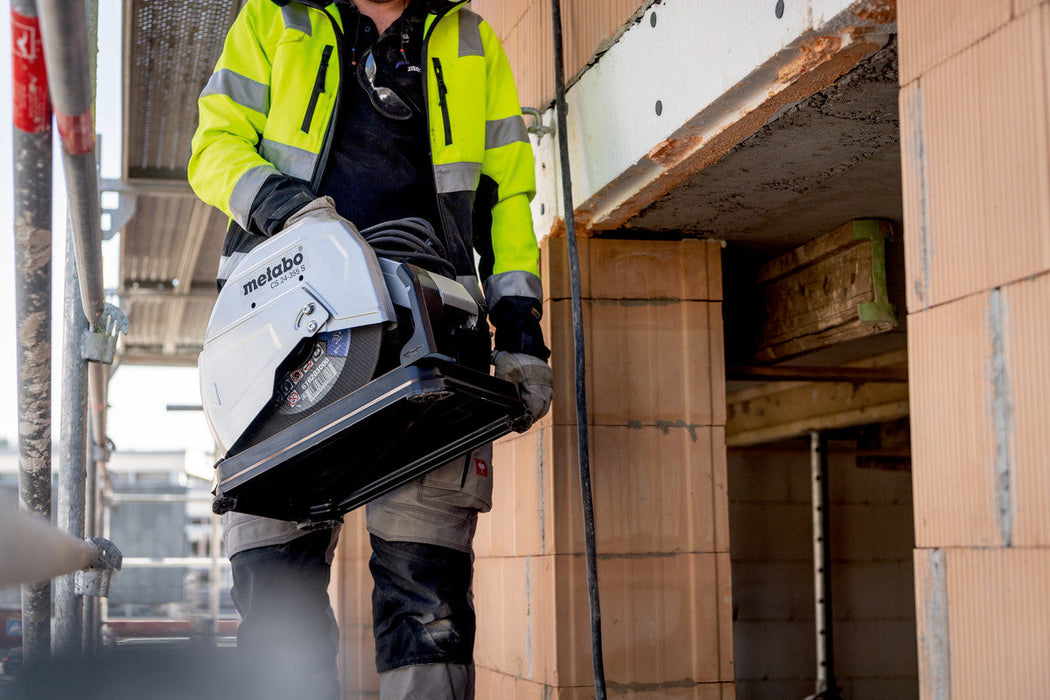

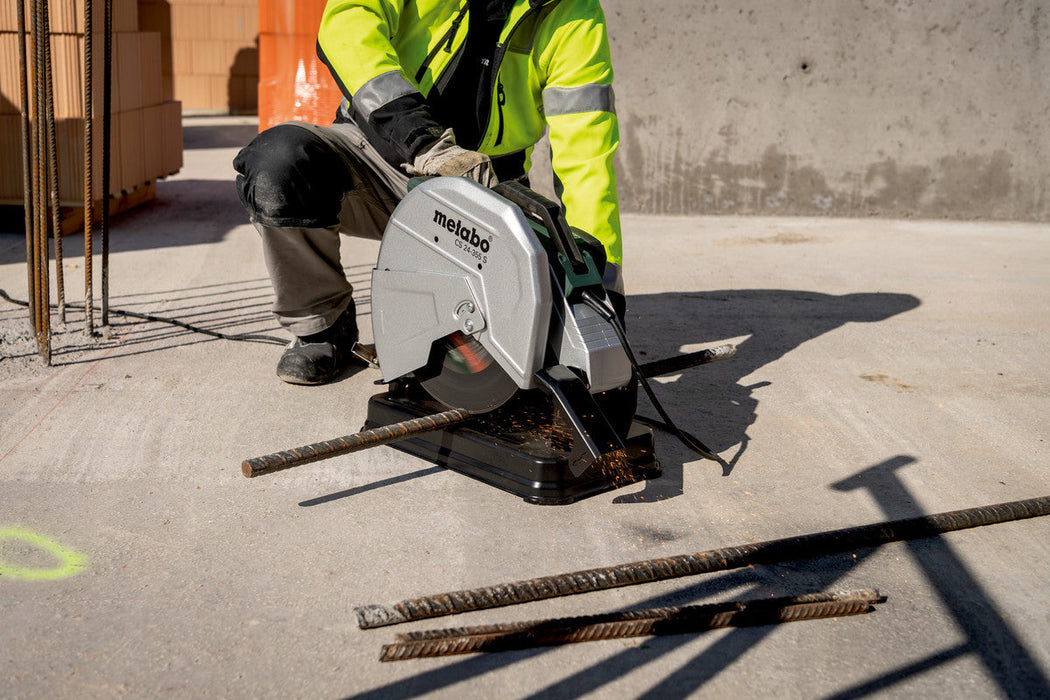

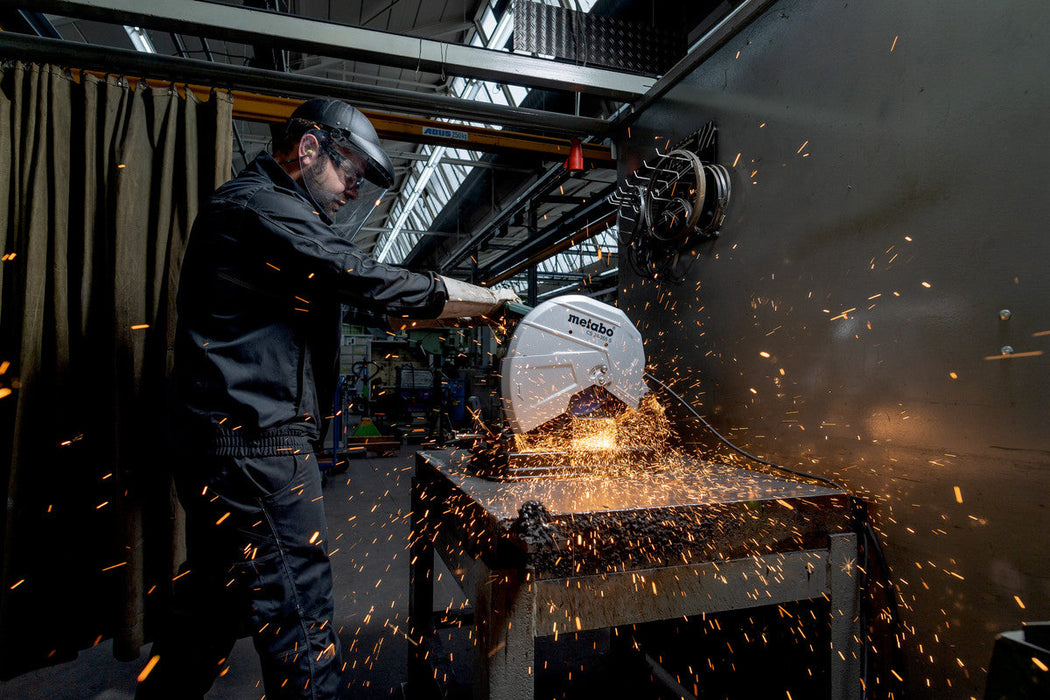

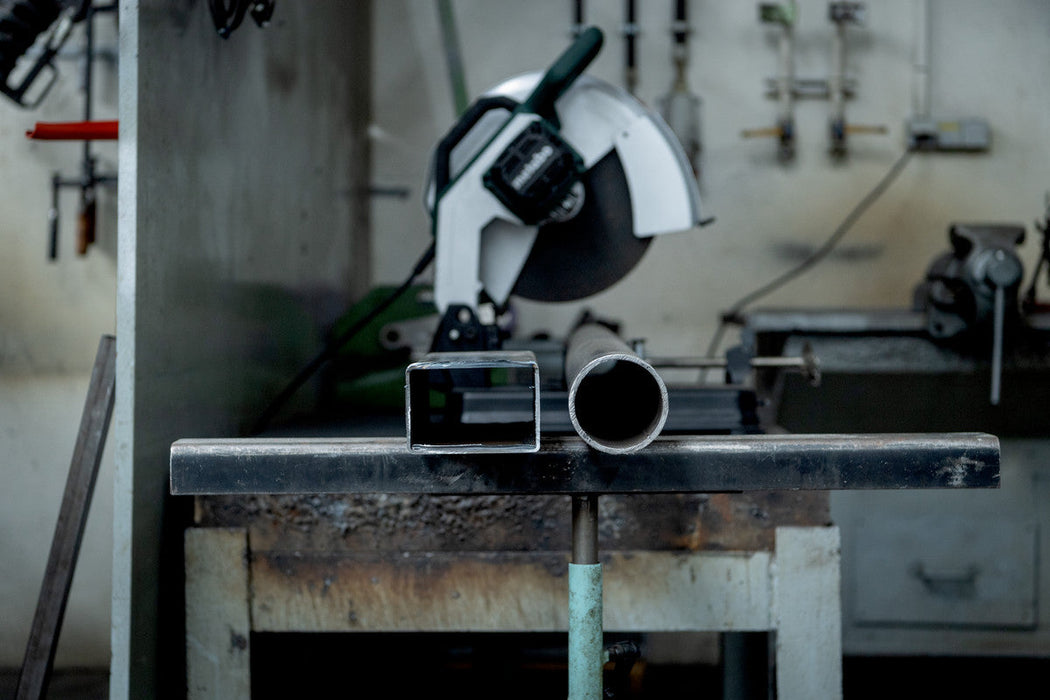

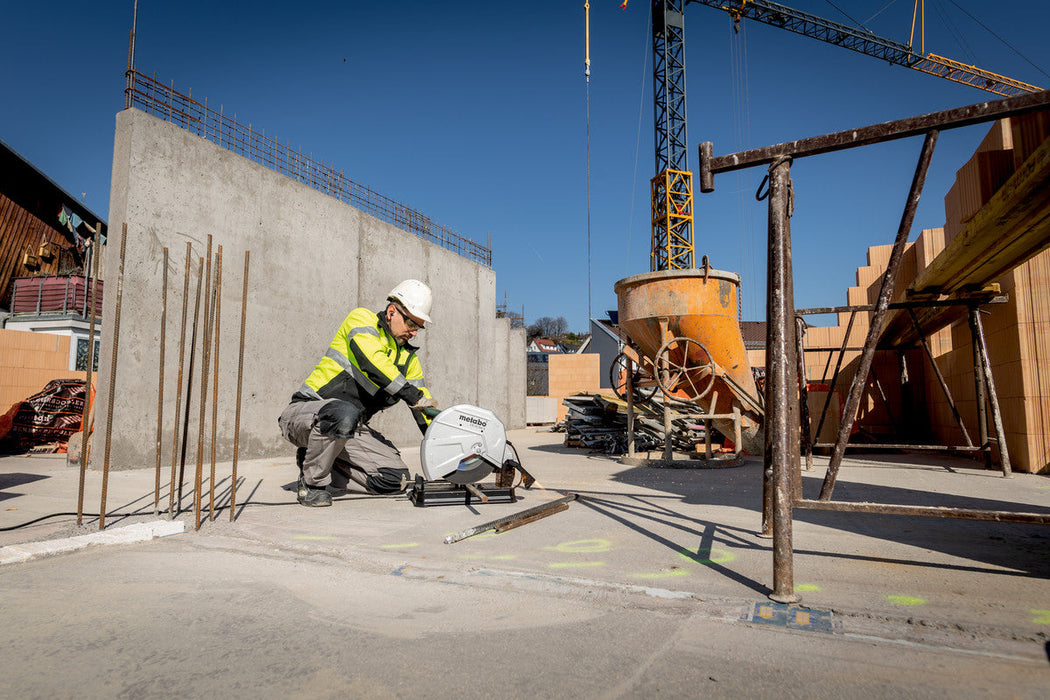

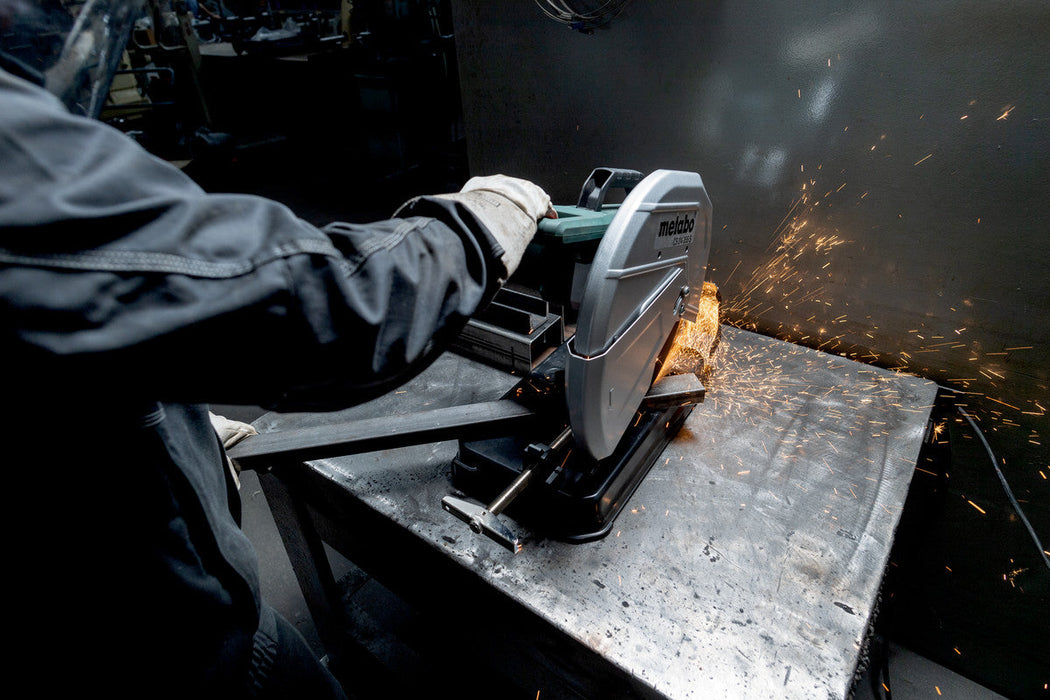

NB: Image of machine portrayed in usage pics on the left is for illustration purposes only, actual model is the CS 22-355.
